* Serviceable Stainless Steel Ball Valve - Can be taken apart via threads, Threaded Connector Type Female to Female NPT
* Stainless Steel 1PC Ball Valve Handle: Handle with blue vinyl insulation
* Body & Ball Type:304 Stainless Steel.Temp Range:-60 F to 450 F
* Stainless Steel 1PC Ball Valve Nominal Working Pressure:1000 WOG:Max 1000 psi for Water, Oil, Gas,
* Stainless Steel 1PC Ball Valve Fluid temp range: -20°f to 410°f, Standard port flow for special use or needs(not full port).
All Categories
1PC Type Ball Valve
| Unit Price: | 15.99~25.99 USD |
|---|---|
| Min. Order: | 10 Piece/Pieces |
| Packaging: | exported standard packing sanitary valves and fittings |
|---|---|
| Brand: | Suote |
| Transportation: | Ocean,Land,Air,Express |
| Place of Origin: | Wenzhou, China |
| Certificate: | ISO9001 |
Product Description
Product Description
DESCRIPTION
Three-piece stainless steel tri-clamp ball valve for process flow control.
Suote carries an extensive supply of commercial brewery, winery and food processing equipment. From basic supplies like fittings and
valves, hose and food-grade washdown equipment, to bottling and packaging equipment for commercial use.
Suote ball valves are made from stainless steel SS304 or SS316. Available in mini ball valve, 1 piece ball valve, 2 piece ball valve, 3-piece ball valve, full port ball valve, all ball valves are installed inline in any position to maximize flow capacity. ball valves can handle 250 PSI WOG, while some of them are rated up to 1000 WOG. All valve handles swing out from center, and some models allow locking of the handle.
valves, hose and food-grade washdown equipment, to bottling and packaging equipment for commercial use.
Suote ball valves are made from stainless steel SS304 or SS316. Available in mini ball valve, 1 piece ball valve, 2 piece ball valve, 3-piece ball valve, full port ball valve, all ball valves are installed inline in any position to maximize flow capacity. ball valves can handle 250 PSI WOG, while some of them are rated up to 1000 WOG. All valve handles swing out from center, and some models allow locking of the handle.
One Piece Threaded Ball Valve
Connection Type：
One Piece Threaded Ball Valve is under national pipe thread standard. Female to female connection.
Material：
One Piece Threaded Ball Valve is under national pipe thread standard. Female to female connection.
Material：
* Stainless Steel 1PC Ball Valve Fluid temp range: -20°f to 410°f
* Available in both Wog200 and Wog1000.
* Package Include: 2 x stainless steel ball valve
High Quality：
These 1 piece ball valves are fitted with tight seals to ensure no leakage and a long lasting seal after many years of frequent
usage.
* Available in both Wog200 and Wog1000.
* Package Include: 2 x stainless steel ball valve
High Quality：
These 1 piece ball valves are fitted with tight seals to ensure no leakage and a long lasting seal after many years of frequent
usage.

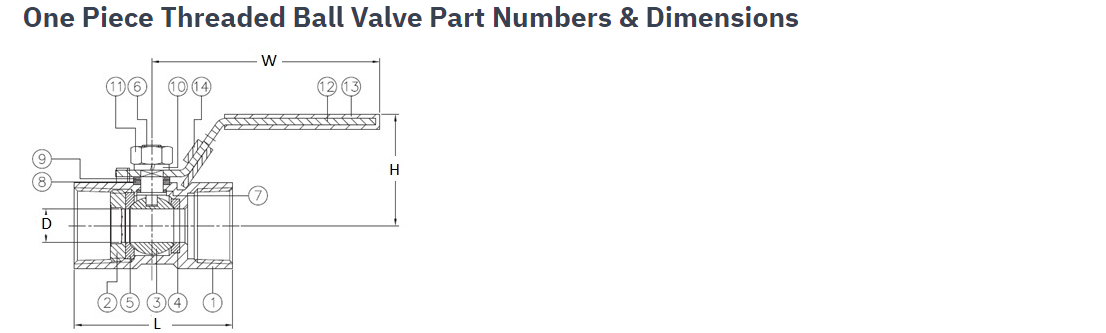

| Size (NPS) | Part Number | Dimensions | | | | |||
| | | D | L | W | H | |||
| 1/4" | BV1-025 | 0.200 | 1.540 | 2.800 | 1.300 | |||
| 3/8" | BV1-0375 | 0.280 | 1.730 | 3.580 | 1.380 | |||
| 1/2" | BV1-050 | 0.360 | 2.170 | 3.740 | 1.570 | |||
| 3/4" | BV1-075 | 0.490 | 2.320 | 3.740 | 1.730 | |||
| 1 " | BV1-100 | 0.590 | 2.720 | 4.450 | 1.970 | |||
| 1-1/4" | BV1-125 | 0.790 | 3.030 | 4.450 | 2.240 | |||
| 1-1/2" | BV1-150 | 0.980 | 3.190 | 5.550 | 2.520 | |||
| 2 " | BV1-200 | 1.260 | 3.820 | 5.550 | 2.680 | |||
| Component | Description | Description |
| 1 | Body | TP316 Stainless Steel |
| 2 | Cap | TP316 Stainless Steel |
| 3 | Ball | TP316 Stainless Steel |
| 4 | Ball | PTFE |
| 5 | Seal | PTFE |
| 6 | Thrust Washer | PTFE |
| 7 | Stem Packing | PTFE |
| 8 | Gland Nut | TP304 Stainless Steel |
| 9 | Spring Washer | TP304 Stainless Steel |
| 10 | Stem Nut | TP304 Stainless Steel |
| 11 | Stem | TP304 Stainless Steel |
| 12 | Spring Washer | TP304 Stainless Steel |
| 13 | Nut | TP304 Stainless Steel |
| 14 | Bolt | TP304 Stainless Steel |
| 15 | Handle | TP304 Stainless Steel |
| 16 | Handle Sleeve | PVC |
| 17 | Locking Device | TP304 Stainless Steel |
| Sanitary Size | OD of Flange End | ID of Tube | OD of Tube |
| 1/2″ | 0.992 | 0.370 | 0.500 |
| 3/4″ | 0.992 | 0.620 | 0.750 |
| 1″ | 1.984 | 0.870 | 1.000 |
| 1 1/2″ | 1.984 | 1.370 | 1.500 |
| 2″ | 2.516 | 1.870 | 2.000 |
| 2 1/2″ | 3.047 | 2.370 | 2.500 |
| 3″ | 3.579 | 2.870 | 3.000 |
| 4″ | 4.682 | 3.834 | 4.000 |
| 6″ | 6.562 | 5.782 | 6.000 |
| 8″ | 8.602 | 7.782 | 8.000 |
| 10″ | 10.570 | 9.782 | 10.000 |
| 12″ | 12.570 | 11.760 | 12.000 |

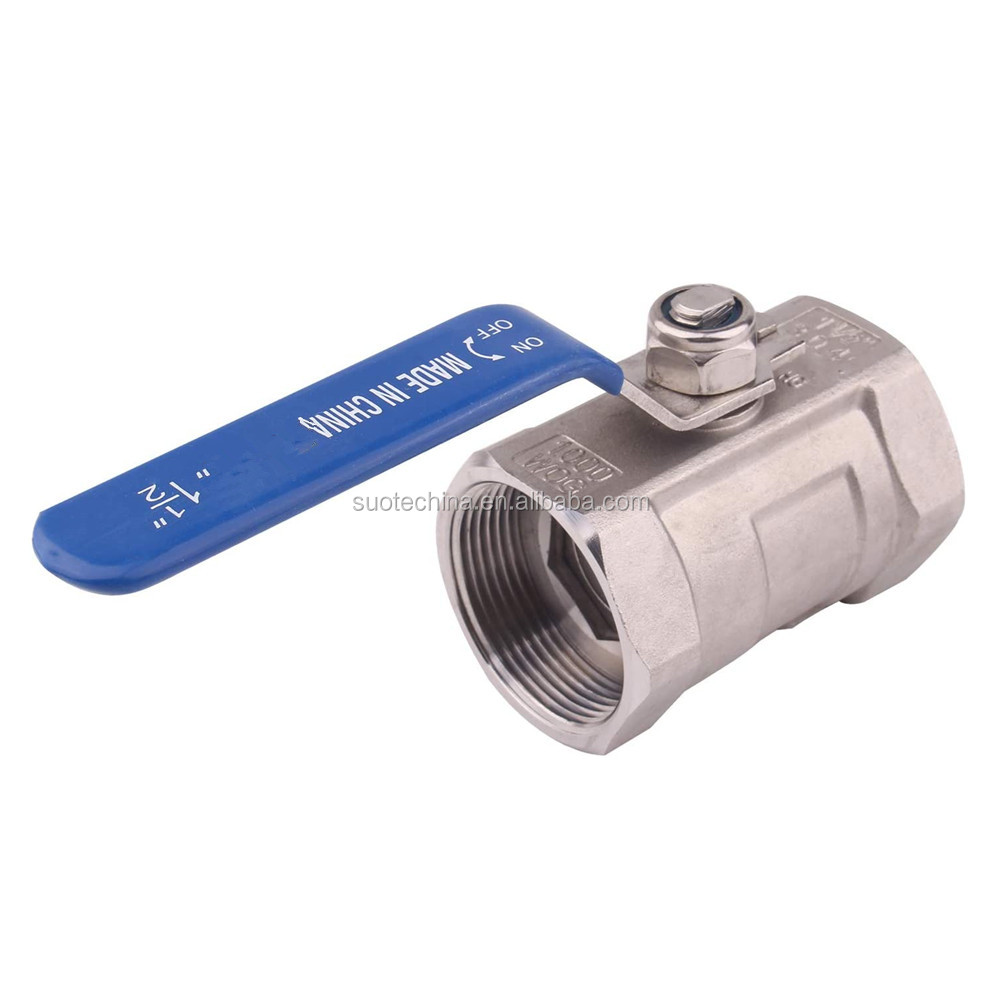

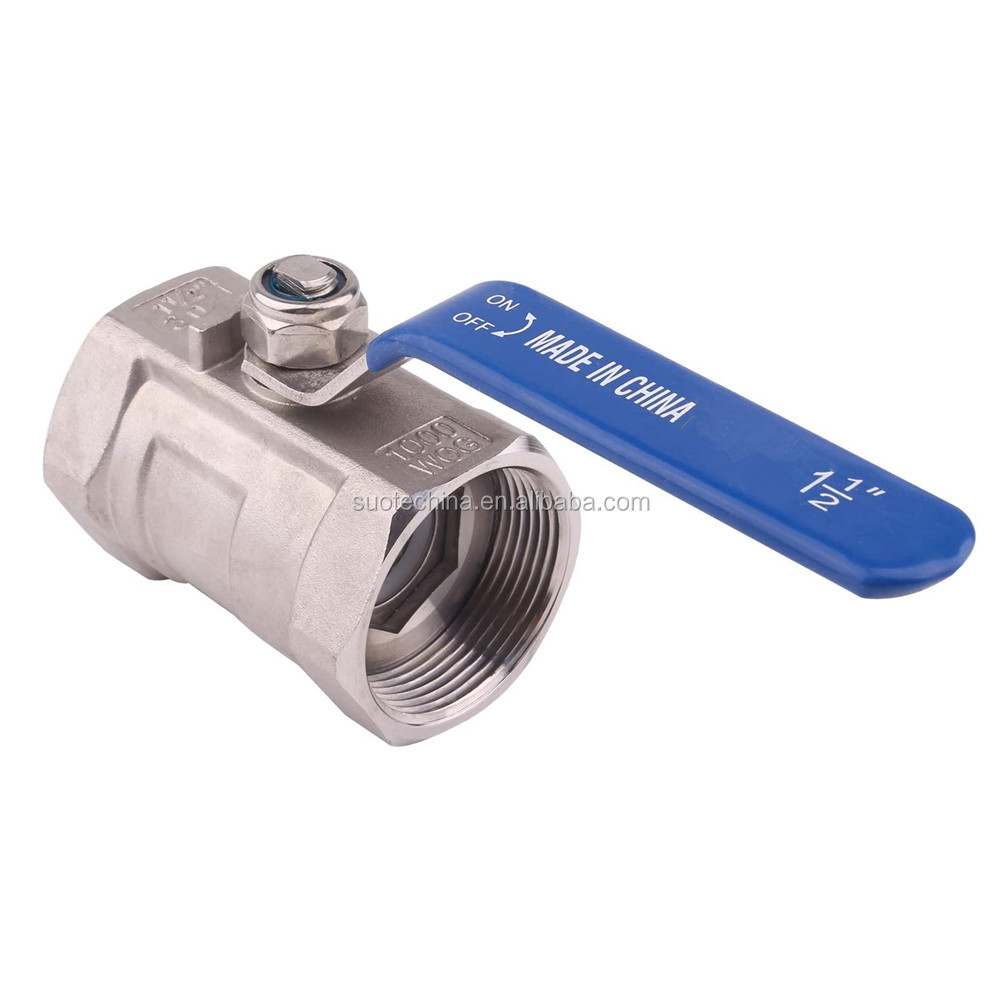

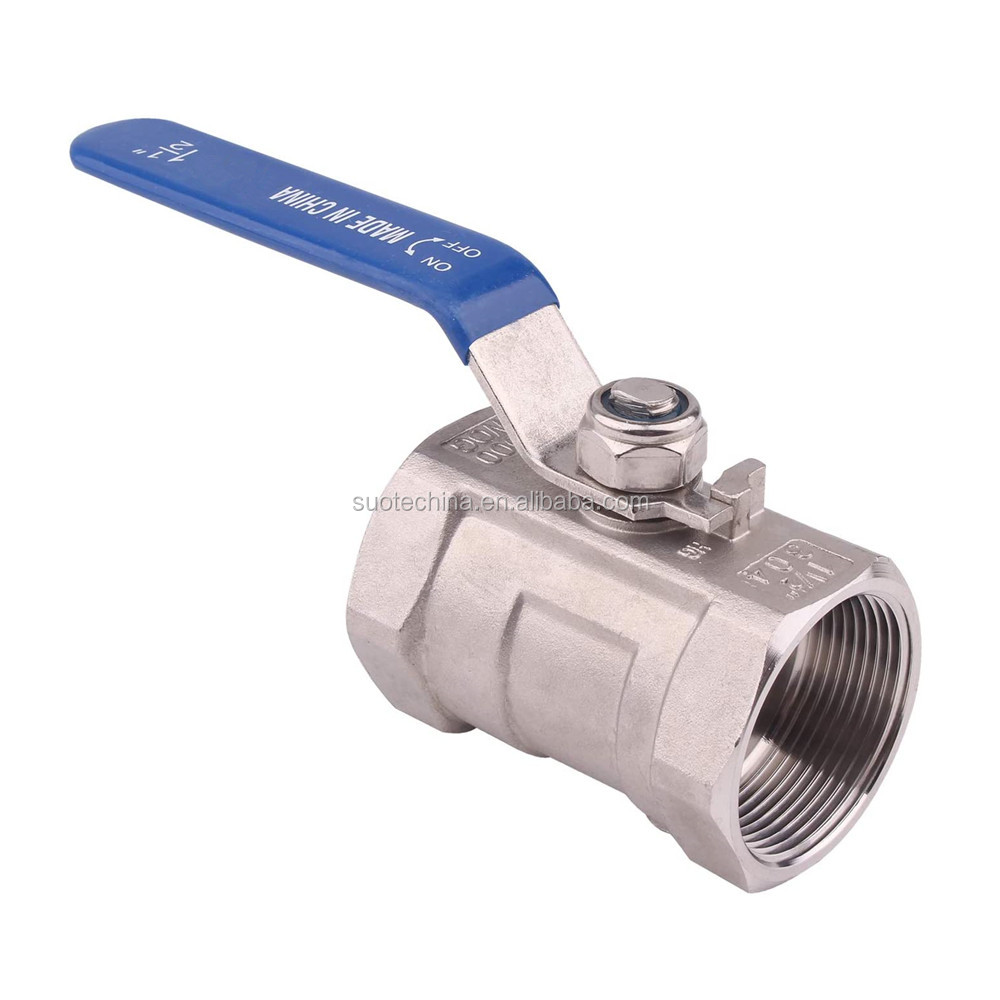

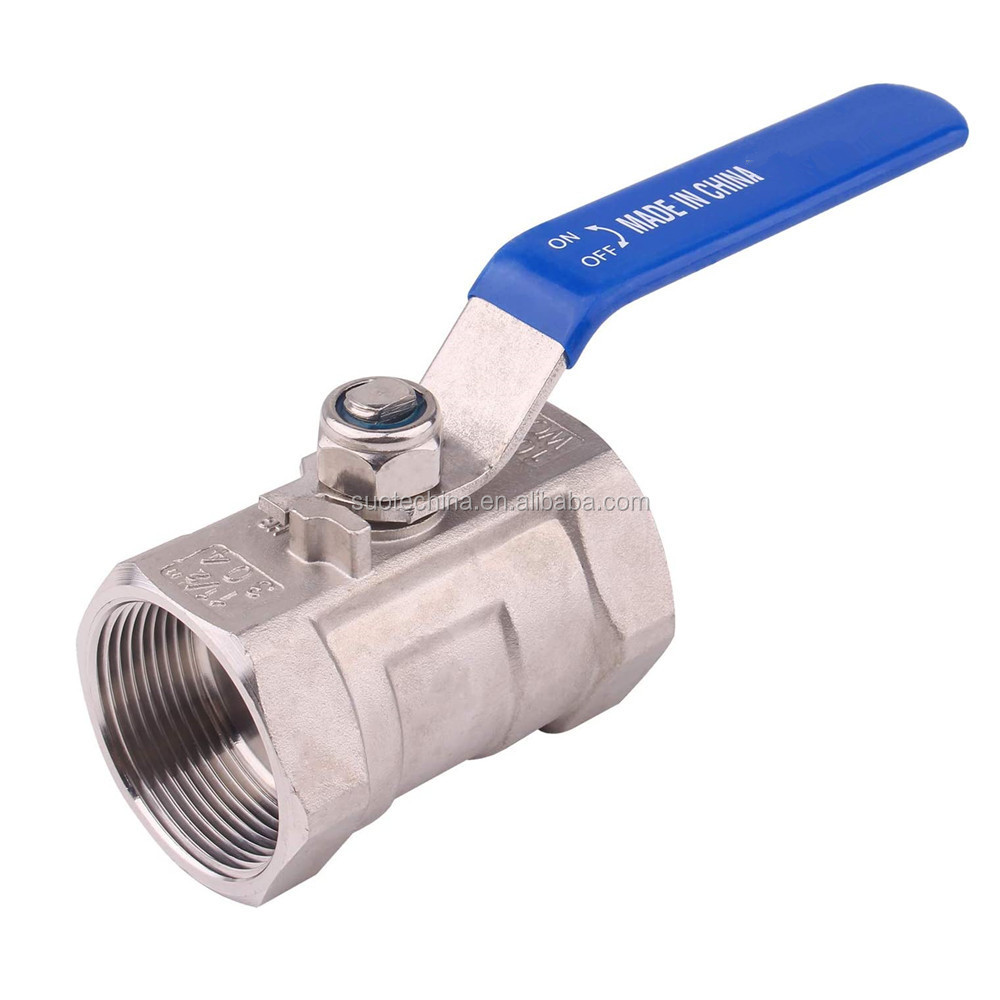

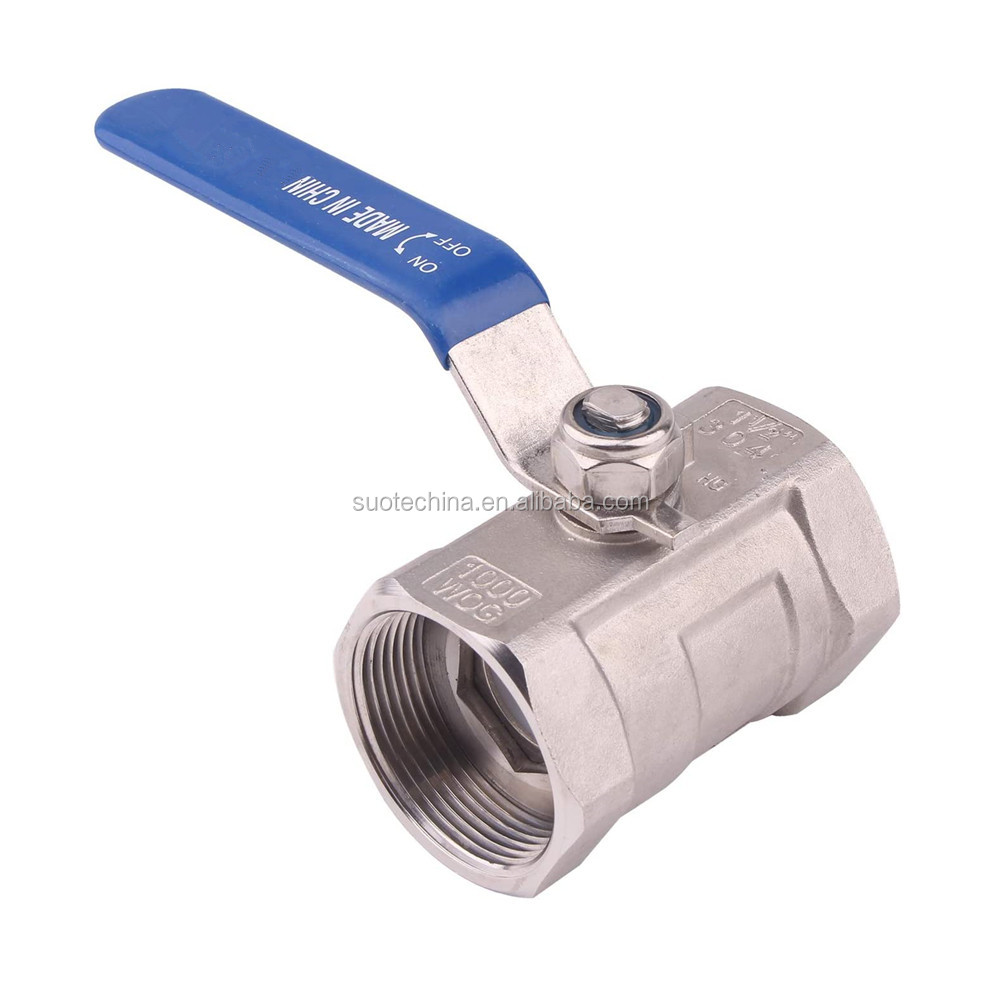

Details Images
FAQ
Q: Are these valves certified for drinking water applications?
A: These valves are suitable for use with water. They are manufactured from 316L Stainless Steel which is corrosion resistant. They are not, however, certified by any governing body as being suitable for water applications.
Q: Is this valve suitable for gasoline service?
A:The one-piece threaded ball valve is not rated to handle gasoline material.
Q: Is there a CAD file available for this valve? I would like to integrate it into my assembly and a pre-made component would be
helpful.
helpful.
A: I'm sorry but we do not have any associated CAD files for our One-Piece Threaded Ball Valves available.
Q: Are these valves rated for 450psi nitrogen at 100 degrees F?
A: hese valves have an operating working pressure of 1000 PSI with a temperature range of -4°F to 392°F.
Q: Are these valves full port?
A: These valves can open up to allow 100% material flow-through rates.
A: These valves can open up to allow 100% material flow-through rates.
